OPTIMUM – OPTIdrill DQ 32 Drill Press

Dimensions and weights
Column diameter 92 mm
Length approx. 850 mm
Width/depth approx. 390 mm
Height approx. 1660 mm
Weight approx. 120 kg
Drilling performance
Drilling performance steel (S235JR) 30 mm
Continuous drilling performance steel (S235JR) 25 mm

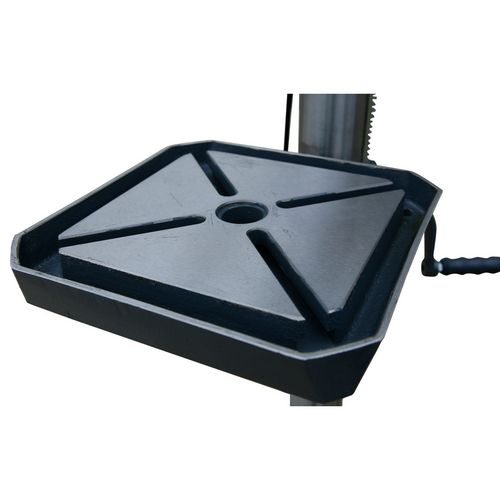

Drilling table
Workspace length 355 mm
Workspace width 355 mm
T-groove type diagonal
T-groove size 14 mm
T-groove number 2
Rotation 360 °

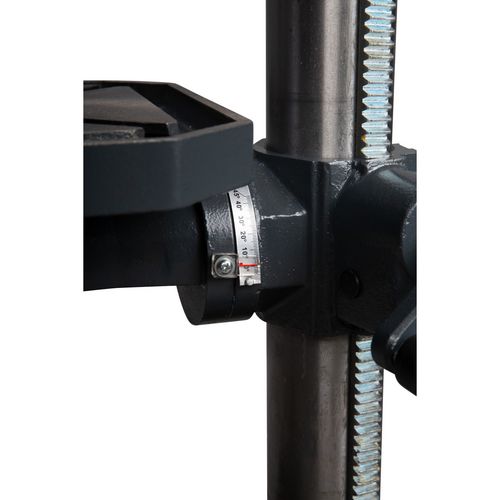

Angle 45 °
Load bearing capacity 55 kg
Max. distance spindle – drilling table 640 mm
Electrical Data
Drive motor output 1,1 kW
Supply voltage 400 V
Mains frequency 50 Hz
Machine base
Max. distance spindle – machine base 1170 mm
Work area length 575 mm
Work area width 350 mm
Machine base T-groove size 15 mm
Machine base T-groove number 2
Machine base T-groove spacing 138 mm

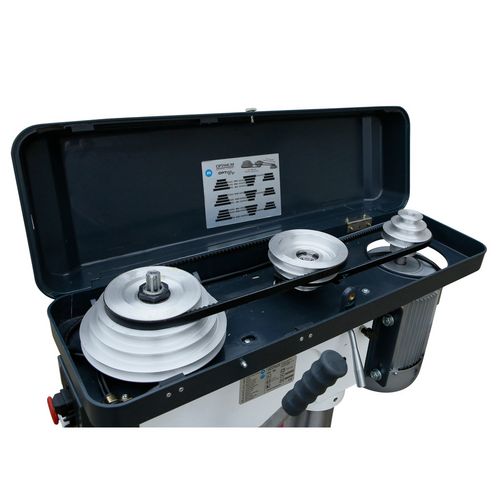

Speed range
Speed range 120 – 1810 min¯¹
Number of gears 9
Spindle
Quill stroke 120 mm
Spindle chuck MT 4
Reach 254 mm
VPE 1 Unit: pc(s).
Packaging unit: 1

Quick action drill chuck 1 – 16 mm
T-nuts
Morse taper MK 3/B16 (DQ 25)
Morse taper MK 4/B16 (DQ 32)
drift punch
