OPTIMUM – OPTIdrill DQ 25 Drill Press

Dimensions and weights
Column diameter 73 mm
Length approx. 700 mm
Width/depth approx. 350 mm
Height approx. 1620 mm
Weight approx. 71 kg
Drilling performance
Drilling performance steel (S235JR) 25 mm
Continuous drilling performance steel (S235JR) 20 mm

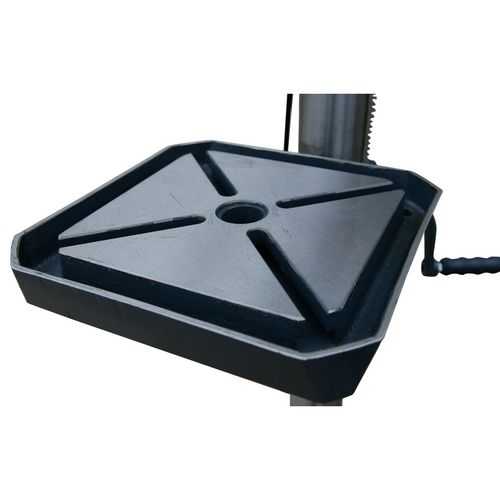

Drilling table
Workspace length 280 mm
Workspace width 280 mm
T-groove type diagonal
T-groove size 14 mm
T-groove number 2
Rotation 360 °
Angle 45 °
Load bearing capacity 40 kg
Max. distance spindle – drilling table 690 mm
Electrical Data
Drive motor output 0,75 kW
Supply voltage 400 V
Mains frequency 50 Hz
Machine base
Max. distance spindle – machine base 1200 mm
Work area length 500 mm
Work area width 300 mm
Machine base T-groove size 15 mm
Machine base T-groove number 2
Machine base T-groove spacing 120 mm
Speed range
Speed range 200 – 2440 min¯¹
Number of gears 12
Spindle Unit: pc(s).
Packaging unit: 1

Quick action drill chuck 1 – 16 mm
T-nuts
Morse taper MK 3/B16 (DQ 25)
Morse taper MK 4/B16 (DQ 32)
drift punch

Quill stroke 80 mm
Spindle chuck MK 3
Reach 181 mm
VPE 1
