Name: OPTIMUM - Metal Bandsaw OPTIsaw - S 350DG *Available on request*
Brand: Optimum machinery
SKU: 49147
Availability: InStock

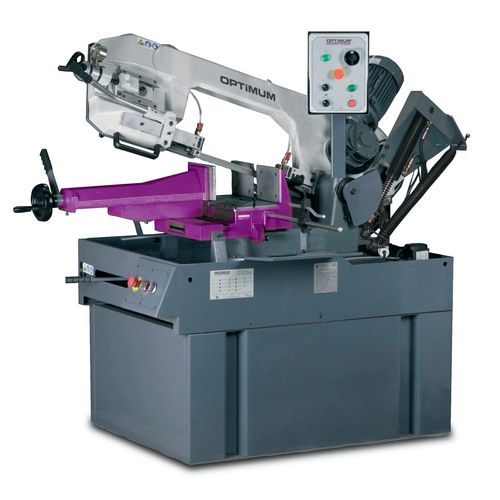

OPTIMUM – Metal Bandsaw OPTIsaw – S 350DG *Available on request*

R216 775,00

Heavy industrial design
Silent run
High cutting accuracy due to vibration-free running
Two switchable speeds 36/72 m / min.
Miter adjustment up to -60 ° by pivoting the entire saw bow
Large dimensioned, robust quick release vice, adjustable via handwheel. Clamping the workpiece with a handy quick release lever
Quick release vice adjustable for large materials

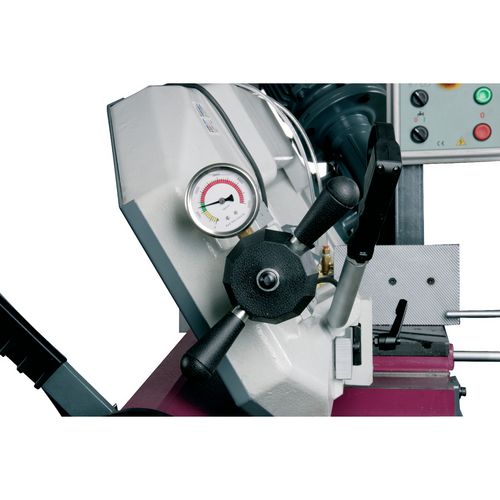

Easy and correct adjustment of saw blade tension by means of pressure gauge
As standard with high-quality bi-metal saw band
End stops adjustable to the degree
chip brush
Ball bearing saw blade guide with carbide tips for optimum cutting results
Precise, infinitely adjustable saw blade movement by means of hydraulic cylinders
Coolant pump
Easy setting of the lowering speed by means of feed control valve in the control panel
Emergency stop impact switch
Robust machine base
Micro switch for automatic limit switch

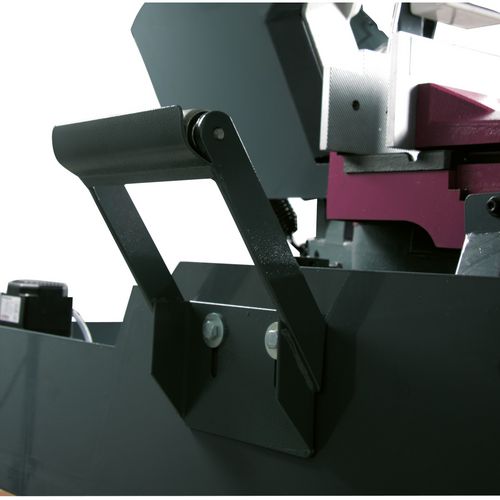

Roller support adjustable for long and heavy workpieces
Fully equipped, allowing the user to be productive immediately after commissioning

1 in stock

Wishlist

PRICE ON REQUEST

6-8 weeks delivery (ex. Germany)

0° round (full material) 270 mm
0° quadratic (full material) 230 mm
0° rectangle horizontal (full material) 230 x 350 mm
-45° round (full material) 230 mm
-45° quadratic (full material) 170 mm
-45° rectangle horizontal (full material) 140 x 200 mm
+45° round (full material) 230 mm
+45° quadratic (full material) 200 mm
+45° rectangle horizontal (full material) 210 x 220 mm
+60° round (full material) 140 mm
+60° quadratic (full material) 140 mm
+60° rectangle horizontal (full material) 140 x 220 mm
Explanation Cutting range Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
Dimensions and weights
Max. width/depth 1415 mm
Max. height 2000 mm
Length approx. 1750 mm
Width/depth approx. 1075 mm
Height approx. 1420 mm
Weight approx. 550 kg
Electrical Data
Drive motor output 2,2 kW
Engine power coolant pump 0.05 kW
Supply voltage 400 V
Mains frequency 50 Hz
Machine data
Saw band speed(s) 36 / 72 m/min
Saw band length 2925 mm
Saw band width 27 mm
Saw band thickness 0.9 mm
Cutting angle -45 – +60 °
Feed infinitely variable
Lifting the saw bow Manual
VPE 1
