OPTIMUM Hand band saw quantum SQ-V10
- Powerful 1.1 kW motor
- Ideal suitable for sawing off solid steel materials with low tensile strength and preferably for sawing off pipes, profiles made of steel, aluminum and non-ferrous metals.
- Also suitable for cutting wood, plastics and other thin non-ferrous metals
- Detachable from the optional work table for flexible use
- Strong bridge construction with aluminum frame
- Variable saw blade speed for different materials
- Easy to operate saw blade clamps and adjusting screws ensure permanently precise band run
- The saw allows gentle material handling, virtually spark-free sawing without coolant
- Transport case
- LED working light illuminates dark working surfaces for precise cutting
- Reduced cutting noise
- The correct working position is always maintained by the adjustable additional handle
- Optimum Quantum Work table for SQ-V10

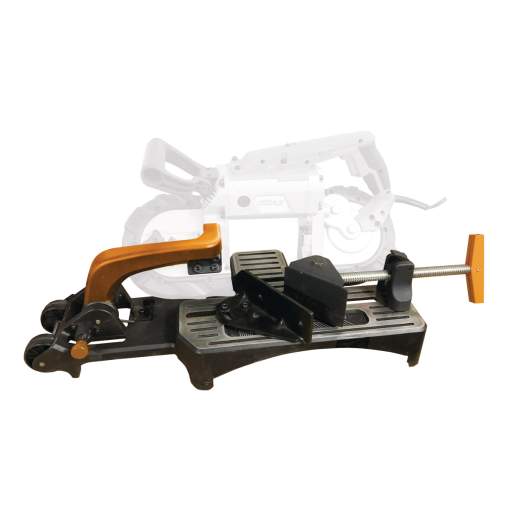

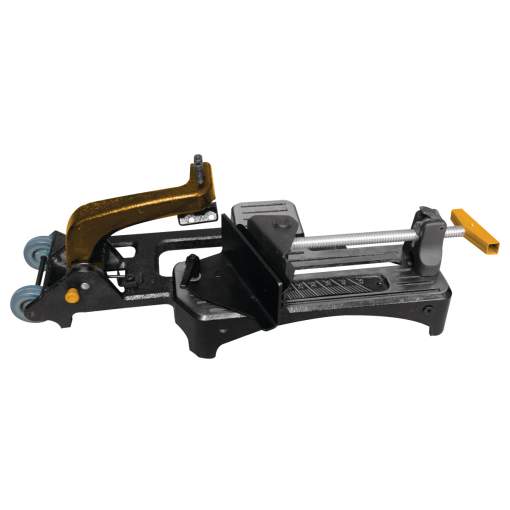

- Worktable including vice
- Remove the 3 threaded cover caps from the SQ-V10 saw and screw the support arm of the vice to the
metal band saw. Sawing operations from 0 to 45° degrees are possible with the vice.
| 0° round (full material) |
127 mm |
| 0° quadratic (full material) |
127 mm |
| 0° rectangle horizontal (full material) |
127 x 127 mm |
| +45° round (full material) |
40 mm |
| +45° quadratic (full material) |
40 mm |
| +45° rectangle horizontal (full material) |
40 x 120 mm |
| Dimensions and weights |
| Length approx. |
465 mm |
| Width/depth approx. |
280 mm |
| Height approx. |
165 mm |
| Weight approx. |
6,6 kg |
| Electrical Data |
| Drive motor output |
1,1 kW |
| Supply voltage |
230 V |
| Mains frequency |
50 Hz |
| Machine data |
| Saw band speed(s) |
42 – 144 m/min |
| Saw band length |
1140 mm |
| Saw band width |
13 mm |
| Saw band thickness |
0,65 mm |
| Sawing capacity max. |
127 x 80 mm |
