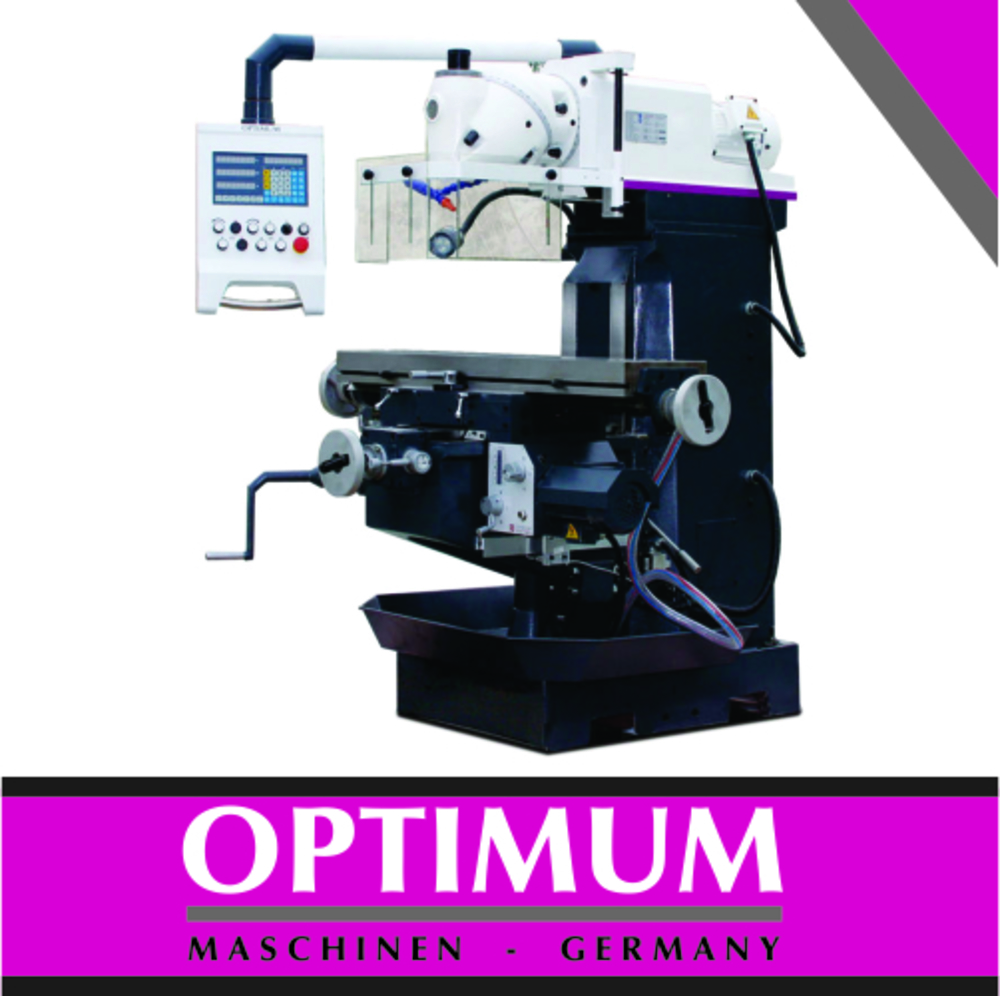

Universal milling machine
Milling machines with 3 axes position display
Technical Specifications
Motor power / Electrical connection 3.36 kW / 400 V / 3 Ph ~50 Hz
Driving motor vertical spindle 2.2 kW
Spindle seat ISO 40 DIN 2080
Draw-in rod M16
Milling head dimension max. 85 mm
End mill dimension max. 20 mm
Spindle seat vertical ISO 40 DIN 2080
Spindle speeds vertical 45 – 1,600 min-1
Gear speeds vertical 11 gear stages
Distance spindle – cross table vertical 90 – 520 mm
Slewing range vertical 360 degree
Turning range vertical 360 degree
Cross table L x W 1,120 x 260 mm
Table feed (9 steps) 18 – 310 mm/min
Load of cross table max. 350 kg
T-slot size / distance / number 14 mm / 63 mm / 3
X axis travel automatic 600 mm
X axis table feed automatic 24 – 402 mm/min
X axis power feed motor 0.37 kW
Y axis travel automatic 270 mm
Y axis table feed automatic 24 – 402 mm/min
Y axis power feed motor 0.37 kW
Z axis travel automatic 380 mm
Z axis table feed –
Z axis table feed rapid traverse 402 mm/min
Z axis power feed motor 0.75 kW
Power of the coolant pump 40 watts
Dimensions (L x W x H) 1,540 x 1,355 x 1,650 mm
Total weight 1,300 kg
Description
Versatility and easy retrofitting – the universal milling machines for workshops – with the digital 3-axis position display DPA 2000
Multi-purpose range of application
Robust machine construction
Very smooth running due to ground oil-quenched gear wheels
Heavy, compact model made of high-grade Meehanite casting
All guideways hardened and adjustable via V-ledges
Central lubrication
Largely dimensioned handwheels with scale
OPTIMUM LED machine lamp
Coolant equipment
Easy operation of the switching elements for the speed alternation
Solid rectangular guideways of the Y-and Z-axis
Equipment details
OPTI-Operating panel
Integrated control panel
Integrated position display
Turnable round the own axis
Milling head
Two turning axes
Scales
Rotatable and slewable to any three-dimensional angle
Cross table
Solid
Precise
Largely dimensioned
Precisely machined surface
T-slots
Adjustable V-ledges
Table feed
Automatic in the X- and Y-axis
Z-axis with positioning feed
Delivery Information
Seat for side milling cutter Ø 22 mm
Collet chuck Ø 4 – Ø 20 mm
Seat of milling cutter ISO40/ Ø32 mm
Operating tool **SPECIAL ORDER ONLY**
