Cooling lubricant system
Coolant pump(s) drive power 100 W
Dimensions and weights
Length approx. 1400 mm
Width/depth approx. 1450 mm
Height approx. 2150 mm
Weight approx. 950 kg
Drilling/milling head
Drill-mill head tilt range ± 45 °
Mill head swivel range ± 90 °
Drilling/milling output
Max. size milling head 76 mm
Max. size shaft milling cutter 18 mm
Drilling performance steel (S235JR) 24 mm
Continuous drilling performance steel (S235JR) 20 mm
Electrical connections
Total rated value 2,2 kW
Electrical Data
Supply voltage 400 V
Mains frequency 50 Hz
Milling table horizontal
Table length 1244 mm
Table width 230 mm
Min. clearance vertical spindle – milling table 57 mm
Max. clearance vertical spindle – milling table 463 mm
T-groove size 16 mm
T-groove number 3
T-groove spacing 63 mm
Max. load bearing capacity 230 kg
Standards and certifications
Standard DIN EN 55011
EMC level C2
Travel
X axis manual 800 mm
Y axis manual 305 mm
Z axis manual 406 mm
X axis automatic 730 mm
Y axis milling head 320 mm
Vertical spindle
Reach 213 – 533 mm
Spindle chuck ISO 40 DIN 2080
Speed range 10 – 5100 min¯¹
Number of gears 6
Speed control electronically adjustable
Vertical spindle normal operation 1,5 kW
Quill stroke 127 mm
Spindle sleeve feed 0.04 / 0.08 / 0.15 mm/rev
VPE 1

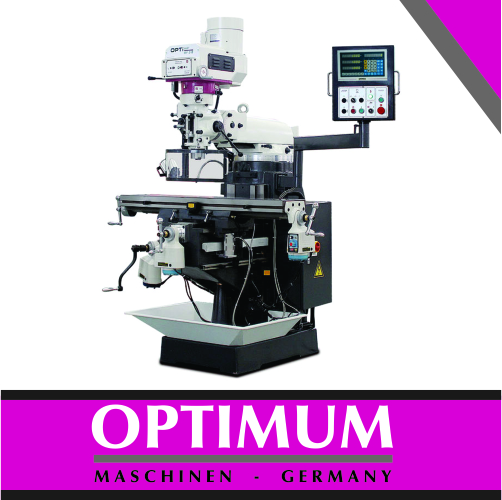

MM3336030 MF 2V MILLING MACHINE
