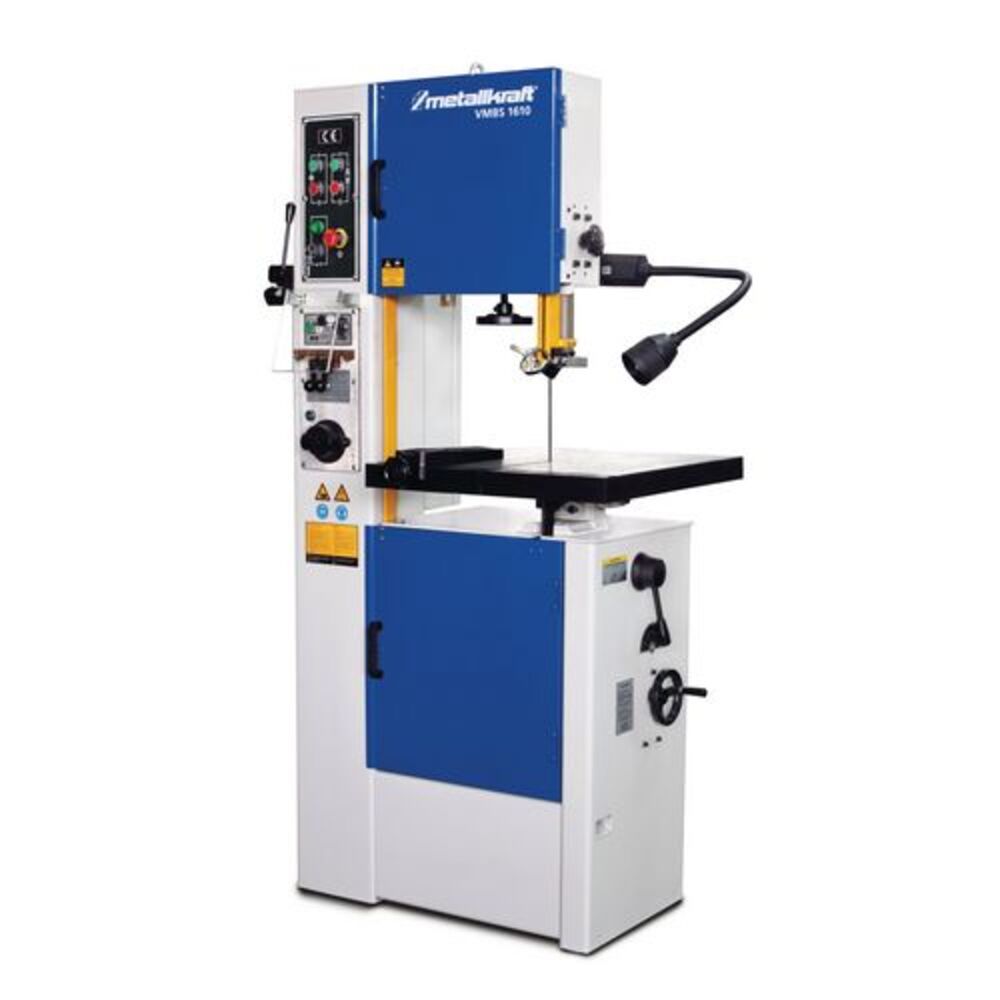

MK3951610 VMBS 1610 VERTICAL BAND SAW

Max. cutting height 255 mm
Saw band speed(s) 20 – 80; 250 – 1000 m/min
Saw band length 3140 mm
Saw band width 16 mm
Reach 396 mm
Table length 550 mm
Table width 600 mm
Table load max. 150 kg
Working height 1000 mm
Table swivel range for mitre cuts 12/15 °
Table swivel range to front and rear 8 / 8 °
Saw band welding device output 16 mm
Wheel diameter 408 mm
Sound pressure level 70.5 dB(A)
VPE 1
Dimensions and weights
Length approx. 940 mm
Width/depth approx. 675 mm
Height approx. 1840 mm
Weight approx. 410 kg
Electrical Data
Drive motor output 1.5 kW
Supply voltage 400 V
Mains frequency 50 Hz
