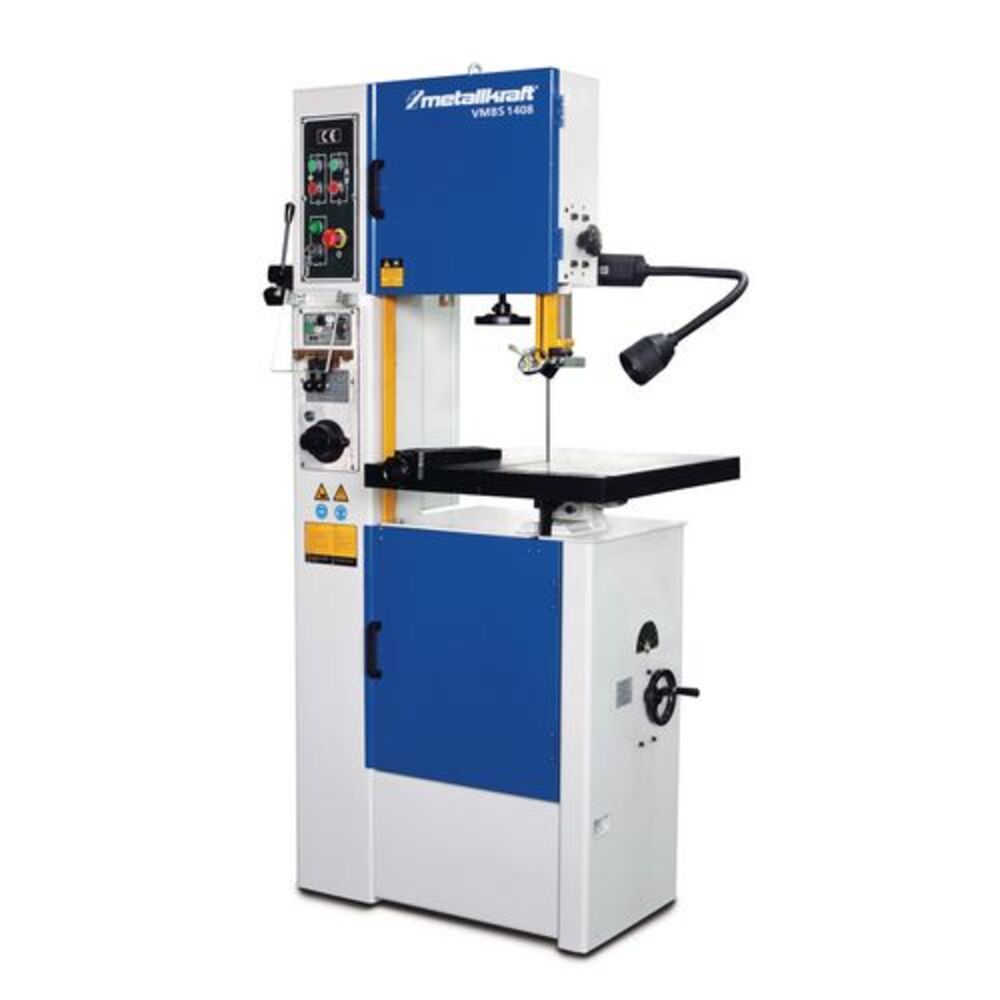

MK3951407 VMBS 1408 VERTICAL BAND SAW

Max. cutting height 205 mm
Saw band speed(s) 20 – 80 m/min
Saw band length 2880 mm
Saw band width 13 mm
Reach 356 mm
Table length 500 mm
Table width 500 mm
Table load max. 150 kg
Working height 990 mm
Table swivel range for mitre cuts 12/15 °
Table swivel range to front and rear 8 / 8 °
Saw band welding device output 13 mm
Wheel diameter 368 mm
Sound pressure level 64.9 dB(A)
VPE 1
Dimensions and weights
Length approx. 850 mm
Width/depth approx. 600 mm
Height approx. 1740 mm
Weight approx. 275 kg
Electrical Data
Drive motor output 0.75 kW
Supply voltage 400 V
Mains frequency 50 Hz
