Description

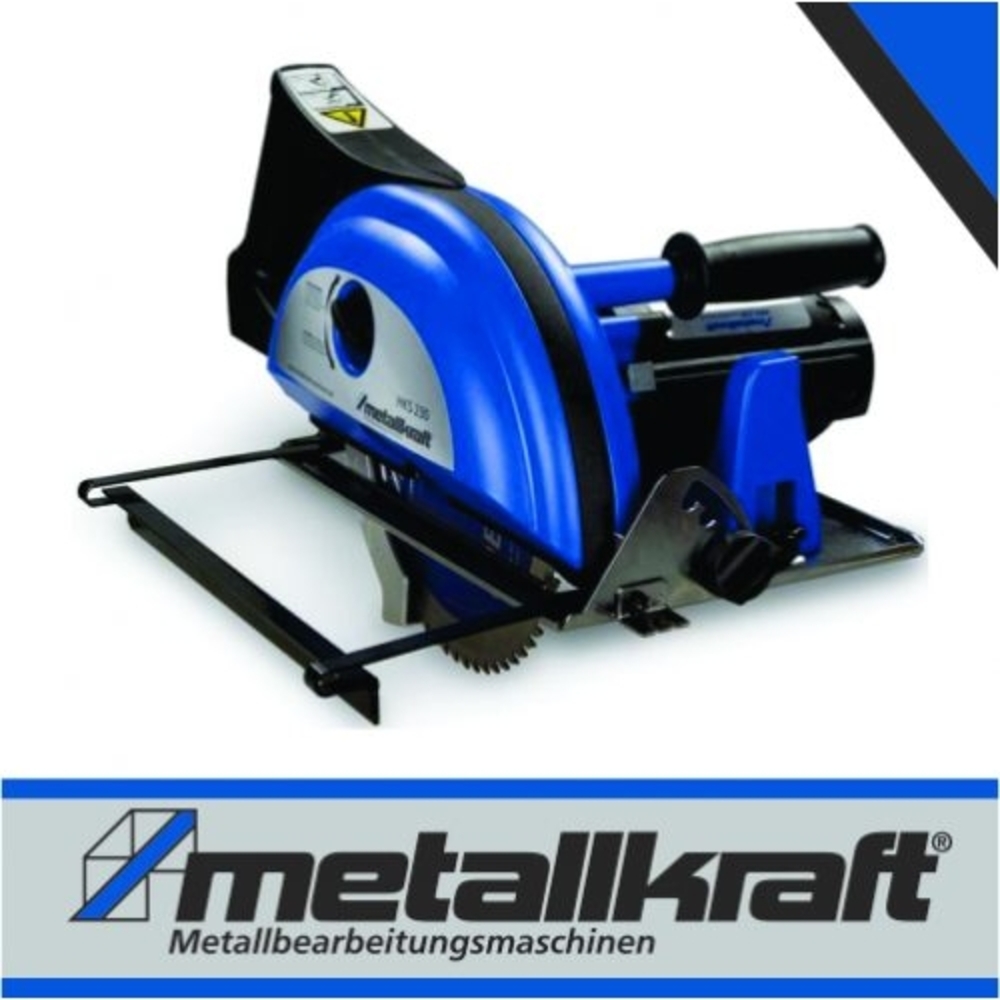

HKS 230
Metal circular saws for operation and construction site for cutting aluminum, steel, and stainless steel
Metal hand circular saw / dry cutter
Metal Kraft
Technical specifications
Motor power 230 V / 50 Hz 1.7 kW
speeds 2200 1 / min
Cutting area 90 ° square / wall thickness 80 mm
Cutting area 45 ° square / wall thickness 56 mm
Max. Saw blade diameter 230 mm
Saw blade bore 25.4 mm
Saw blade thickness 2 mm
Dimensions 620 x 320 x 270 mm
mass
description
Metal hand circular saw for operation and construction sites for cutting aluminum, steel and stainless steel
the ideal machine for assembly companies, facade builders, locksmiths, repair shops, stand builders, etc.
Ideally used where cut-off machines are not strong enough or work uncleanly
cuts stainless steel without burrs
Chips dissipate the heat, thus only low heat development when cutting
Heavy-duty motor with soft start and overload protection
Dipping into the material possible
uncomplicated and fast cutting depth adjustment on the basis of a precise and easy to read scale
stable and robust construction
Handle can be screwed in two different positions for convenient handling of the saw in each position
easy handling
Room amenities:
uncomplicated and fast cutting depth adjustment on the basis of a precise and easy to read scale
fast saw blade change by gear lock pin
with a double rip fence for precise cutting
stepless and comfortable setting of the miter angle; Grids at 0 °, 15 °, 30 ° and 45 °
Handle can be remounted at Miter cuts, so that the saw can be guided safely parallel to the cutting plane
Scope of delivery & equipment
Machine is delivered in a robust plastic case without saw blade
ON ORDER ONLY
