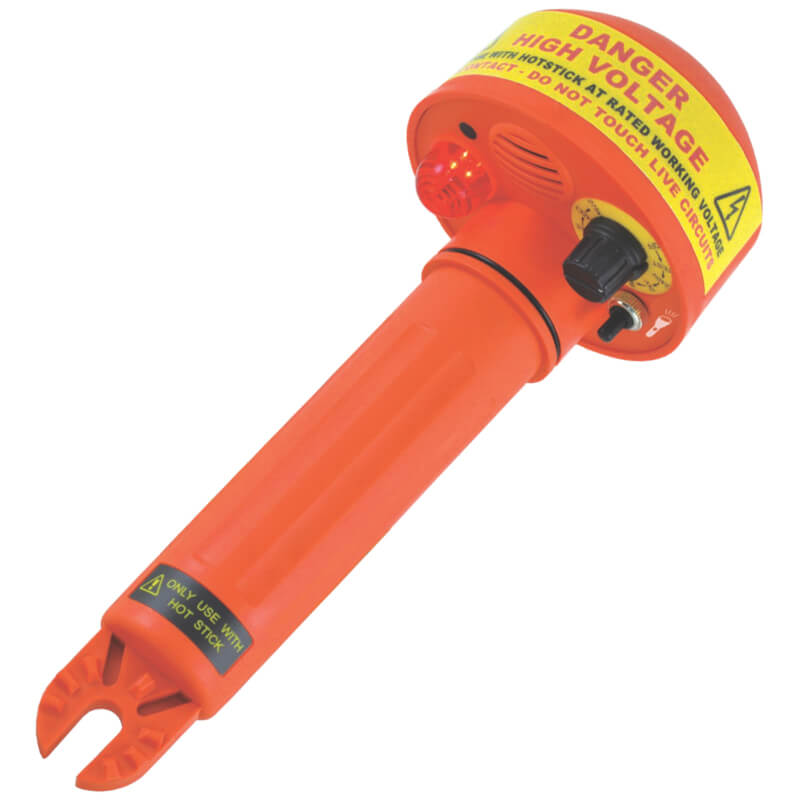

- Non-contact AC voltage detection for enhanced operator safety
- Detects voltages from 380V AC to 500kV AC
- 8 selectable voltage ranges for low and high voltage applications
- Bright LED visual and audible voltage indication
- Compatible with insulated hot sticks and link sticks
- Suitable for live cable detection and fault location in open cables, overhead lines, Substations and HV Cable Testing.
- Detects residual and induced voltages
- IP65-rated dustproof and waterproof housing
- Rugged shock-resistant construction
- Built-in self-test function Automatic zero adjustment for reliable detection
- Lock-down test button for continuous operation
- Strong anti-interference performance for dependable detection
- Compact, lightweight and easy to transport
- Comply with EN 61326-1, CISPR 11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8
Includes:
- Carrying Case
- 3 x C Batteries
- Instruction Manual
Specifications:
| Function | Range |
| Non-Contact Voltage (NCV) | Yes |
| AC Voltage | 380V, 6KV, 10kV, 27.5kV, 35kV, 110kV, 220kV, 500kV |
| Frequency | 40 – 70Hz |
| Voltage Detector Visual | Hi bright red LED |
| Voltage Detector Audible | High noise level buzzer |
| Power On Indicator | Self-test selection |
| Flash Light | Yes |
| Enclosure | Moulded IP65 |
| Batteries | 3 x C |
| Dimensions | 255 x Ø96 x Ø45mm |
| Weight | 531g |
| Safety Specs | EN61326-1 CISPR 11, EN61000-4-2, EN61000-4-3, EN61000-4-8 |
