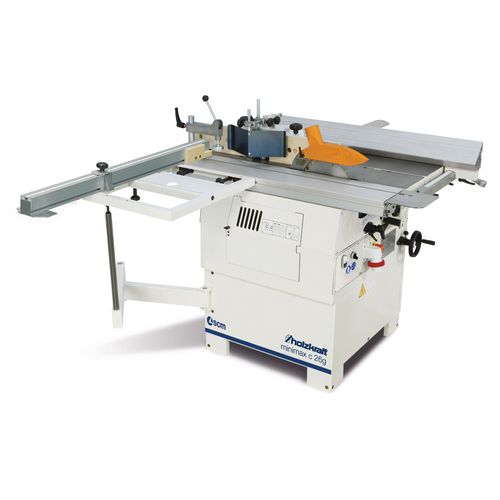

Name: HolzKraft - Multiple combination minimax c 26g TERSA - 5500027 *AVAILABLE ON REQUEST*
Brand: Holzkraft
SKU: 49150
Availability: BackOrder

HolzKraft – Multiple combination minimax c 26g TERSA – 5500027 *AVAILABLE ON REQUEST*

R306,475.00

For sawing, milling, planing, thickness planing and optional slot drilling.
The work tables made of heavily ribbed grey cast iron and the base frame made of welded steel guarantee torsional rigidity and vibration-free working.

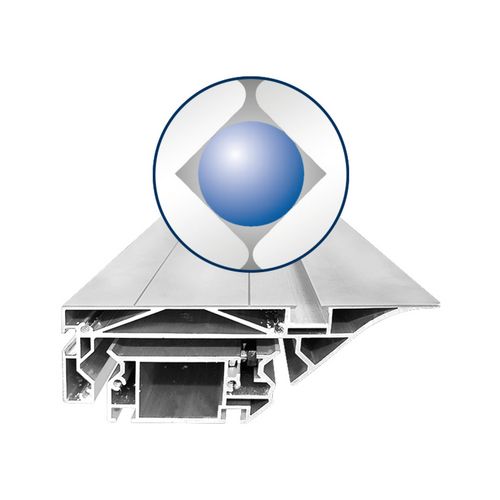

Unique in this performance class: smooth-running aluminium sliding carriage, anodised, with ball contact system
Swivelling saw blade from 90° – 45

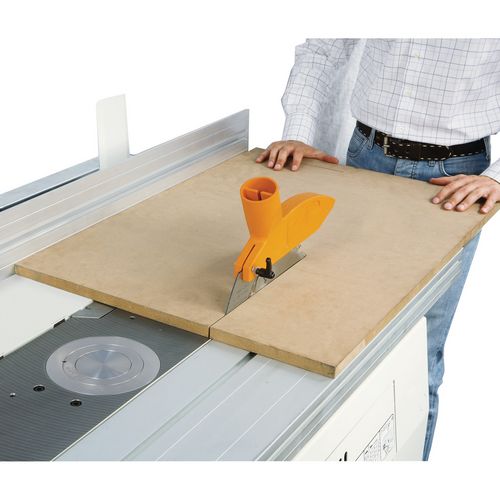

Trimming frame with degree scale and aluminium crosscut fence for angular cuts on panels and large workpieces

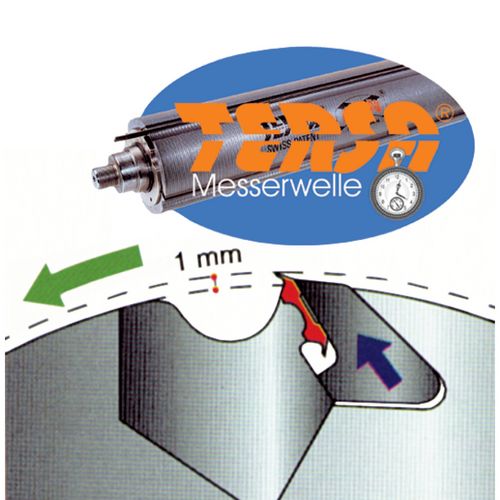

Planing unit with TERSA quick-change system with three planing knives

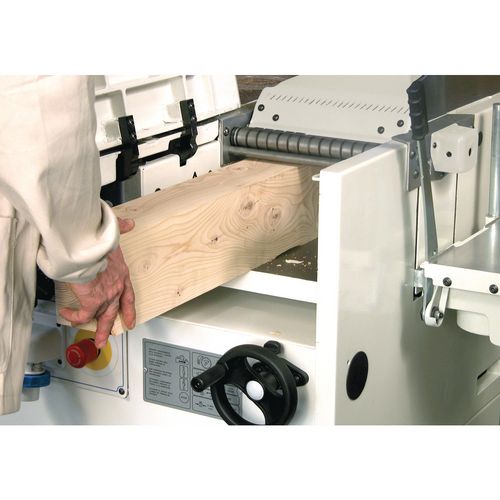

Diagonally toothed steel infeed roller for constant workpiece infeed during thickness planing

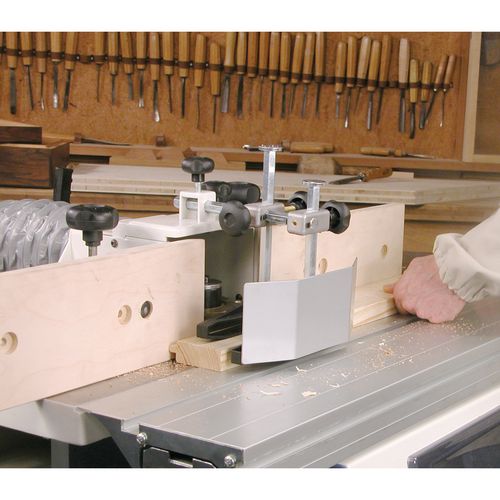

Curved milling protection hood for profiling, with fine adjustment as standard
Milling unit with two speeds
Drive of the aggregates via three independent motors
Quality Made in Italy

Available on backorder

Trimming length 1200 mm
Cutting width with rip fence 500 mm
Max. cross-cutting width left of saw blade 1200 mm
Saw blade angle 90 – 45 °
Max. cutting height at 90° 67 mm
Max. cutting height at 45° 40 mm
Max. saw blade protrusion 90° 75 mm
Max. saw blade protrusion 45° 60 mm
Diameter of (main) saw blade 250 mm
Scoring-saw blade diameter 250 mm
Dimensions and weights
Weight approx. 240 kg
Electrical Data
Drive motor output 3 x 1.8 kW
Supply voltage 400 V
Mains frequency 50 Hz
Extraction port
Extraction port diameter 4 x 120 mm
Saw blade protection extraction port diameter 60 mm
Feed
Speed 6 m/min
Installation information
Space requirement length 2460 mm
Space requirement width/depth 2115 mm
Space requirement explanation The dimensions take into account maximum travel distances or useful lengths.
Jointing
Infeed table width 260 mm
Infeed table length 1040 mm
Angle of inclination saw/joint stop 90/45 °
Max. cutting depth 3 mm
Milling cutter diameter max.
not lowerable 160 mm
lowerable 150 mm
Pin milling 180 mm
Milling spindle
Angle 0 °
Mandrel diameter 30 mm
Usable length 75 mm
Speed(s) 5000 – 7500 min¯¹
Planing knife shaft
Type TERSA
Diameter 62 mm
Number of planing blades 3 St
Sliding carriage and table
Sliding table length 1140 mm
Sliding table width 201 mm
Sliding table height 70 mm
Table length 1024 mm
Table width 224 mm
Table height 900 mm
Thickness
Table length 450 mm
Table width 260 mm
Working height min. 3 mm
Working height max. 200 mm
Max. cutting depth 3 mm
VPE 1

Scope of delivery:

• Tersa quick-change planer knife
• Anodized aluminium sliding carriage

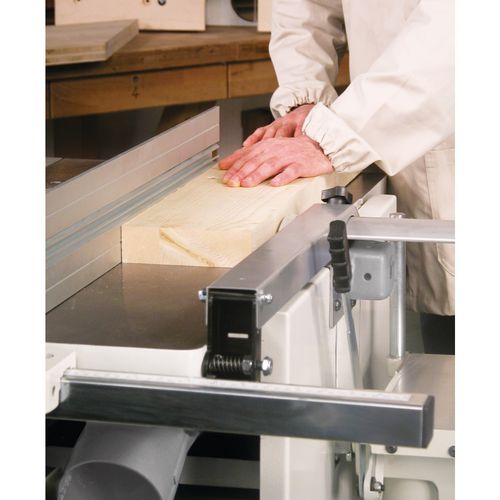

• Multifunction stop for parallel cutting and planing
• Table booms with crosscut fence and stop jaw

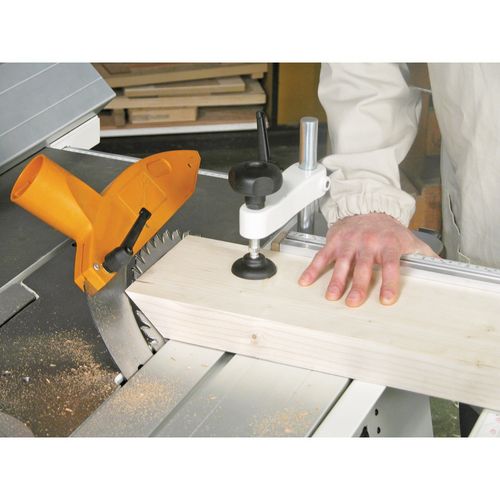

• Eccentric clamping arm

Sliding carriage made of anodised aluminium
Trimming frame with angle-adjustable cross-cut fence with one stop jaw
Eccentric clamp ✔
Strokes Combination dressing/parallel fence
Curved milling protection hood ✔, with fine adjustment

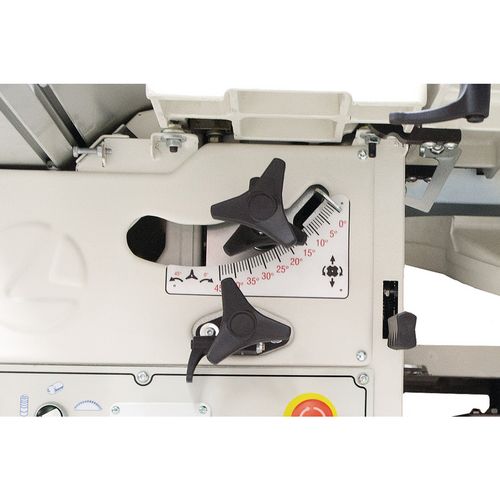

Height adjustment and tilting of the saw unit manual
Height adjustment and swivelling of the milling unit manual
