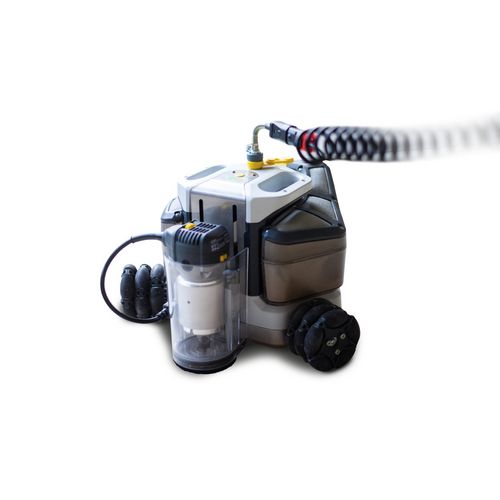

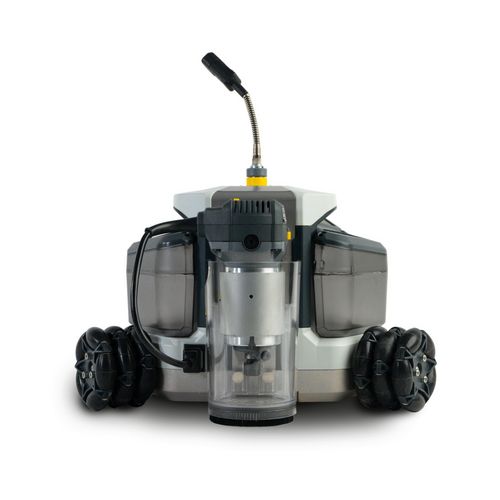

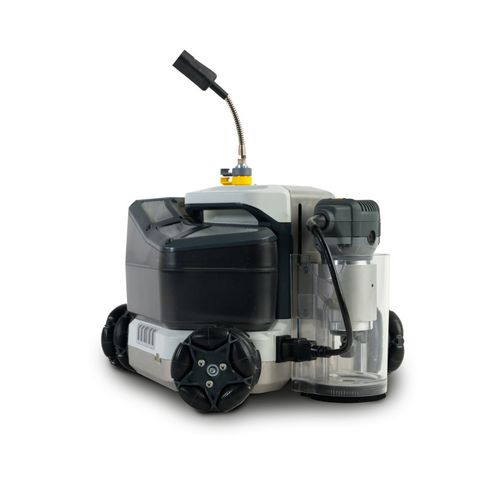

Name: HolzKraft - MAKER Portable CNC milling robot - 5509050 *AVAILABLE ON REQUEST*
Brand: Holzkraft
SKU: 49149
Price: 118852.50 ZAR
Availability: BackOrder

HolzKraft – MAKER Portable CNC milling robot – 5509050 *AVAILABLE ON REQUEST*

R118 852,50

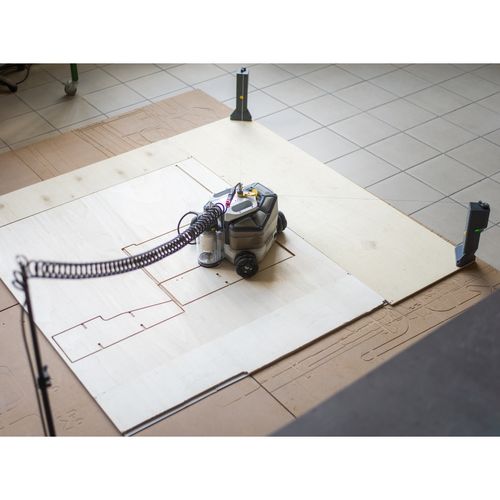

For flexible, fully automatic processing of workpieces with a diagonal of up to 3.5 m
Its revolutionary drive and sensor system overcomes the design limitations of stationary CNC milling machines

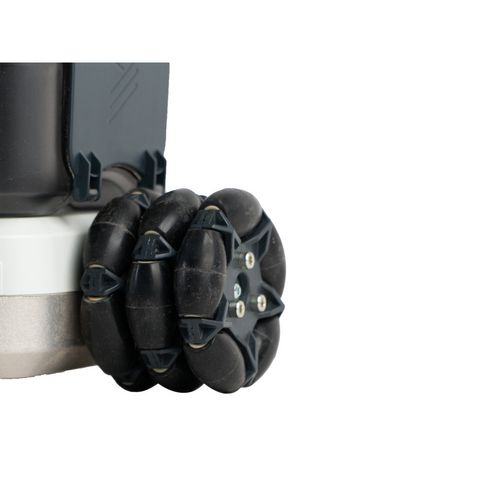

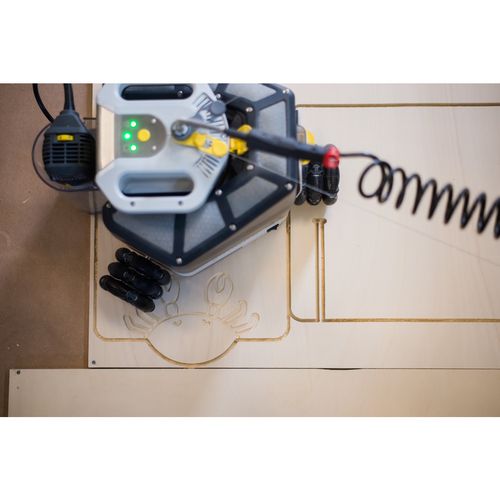

Specially designed omnidirectional wheels enable free movement on flat work surfaces without interference from already milled grooves or profiles
Chips and dust particles are picked up directly by the integrated extraction system and collected in a container

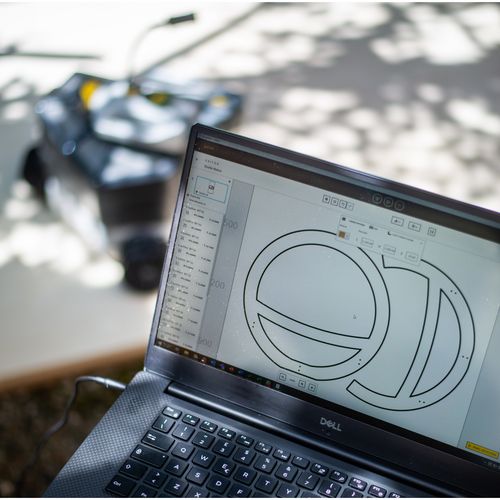

Precise production of any shape using user-friendly software
Infinitely adjustable speed
Can be used anywhere thanks to its low weight

Available on backorder

Wishlist

*AVAILABLE ON REQUEST*

ETA: End August 2025

Spindle speed from to 13000 33000 min-¹
Clamping diameter max. 8 mm
Tool diameter max. 8 mm
Tool diameter min. 3 mm
Outside collet lenght max. 58 mm
Outside collet lenght min. 10 mm
Maximum raw part width 1300 mm
Maximum raw part length 2500 mm
Maximum raw part thickness 25 mm
Max. Travel speed 3 m/min
Chip container volume 5 l
VPE 1
Dimensions and weights
Length approx. 410 mm
Width/depth approx. 410 mm
Height approx. 300 mm
Weight approx. 15 kg
Electrical Data
Drive motor power 1200 W
Spindle power 710 W
Current strength 5.2 A
Supply voltage 230 V
Mains frequency 50/60 Hz
Noise emission
Sound pressure level 85 dB(A)

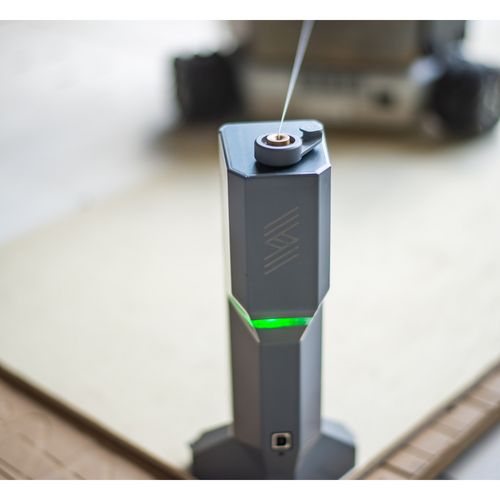

Sound power level 95 dB(A) Two tower sensors (length 150 mm, width 150 mm, height 350 mm, weight 0.65 kg each)
Two USB cables

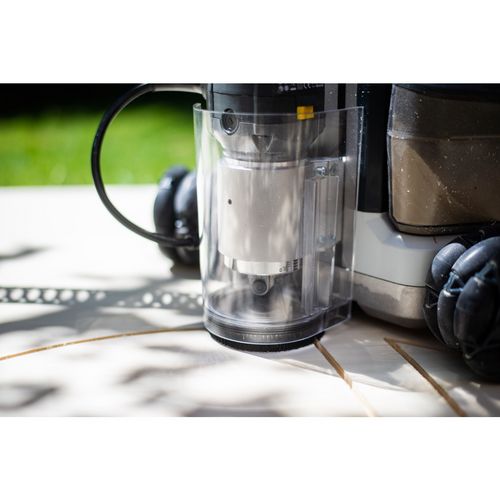

Transparent spindle guard
Mains cable including mains cable stand
ER11 collet chuck
CNC milling cutter 6 mm
Open-end wrench 17 mm
Spare carbon brushes for the milling motor
Control software via download link
