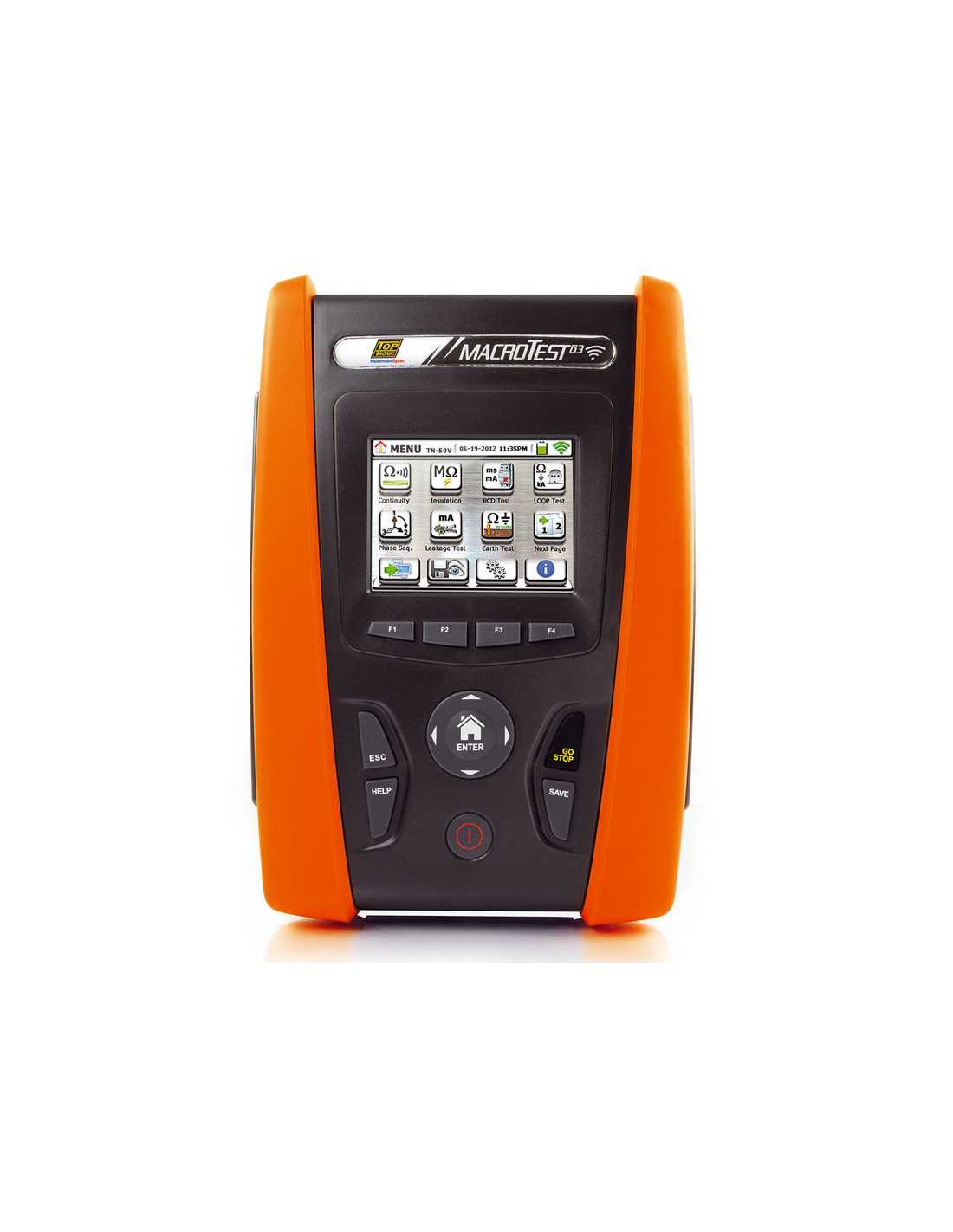

All SANS10142 electrical safety verifications
(23kA L-N) (40kA L-L) ? Earth resistance by voltammetric method with 2 or 3 poles in TT- TN and IT systems
Ground resistivity with 4-wire method ? Measurement of electric parameters in single-phase installations (V- I- W- VAR- VA- PF)
Test of RCDs type A- AC- B up to 1A ? Test earth leakage relays with test current up to 10A (with optional accessory RCDX10)
Loop/Line impedance P-N- P-P- P-PE also with high resolution (0.1m?) with optional accessory TIMP57
Insulation resistance test with 50- 100- 250- 500- 1000V DC ? PSC/LOOP impedance tests P-P- P-N- P-PE
Continuity of protective conductors with 200mA
Phase Sequence and leakage currents verification
Touch-screen colour display (320x240pxl)
PC interface with optical USB and Wi-Fi ? 999 Memory locations- 3 levels of markers
Power Source 6 x 1.2V type AA rechargeable batteries or 6 x 1.5V type AA alkaline batteries
Standard Accessories –
UNIVERSALKITG3 – 4 cables- 4 Crocodile clips- 3 test leads
KITTERRNE – 4 Earth rods and cables in soft carry bag
PR400 – Remote switch probe
PR400 – Stylus
VAS07 ? Rigid hard case
TOPVIEW2006 – PC software and optical-USB connection cable
