DVV-13ZG
DVV-13Z
DVV-13Z

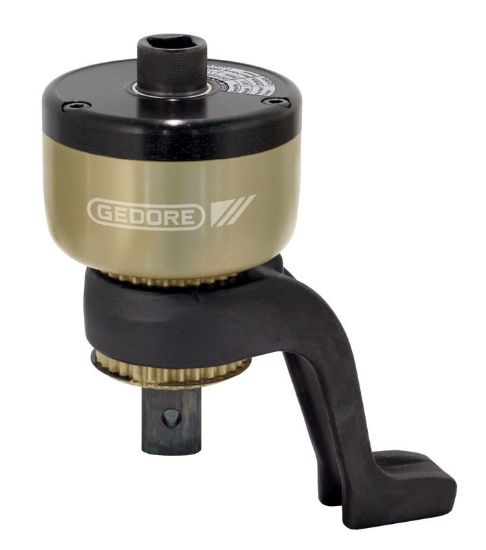

TORQUE MULTIPLIER DREMOPLUS ALU
1300Nm / 950lbf·ft
Particularly suitable for:
› Industry, construction sites, car and truck garages, agricultural technology.
› Bridge, aircraft and railway construction, ship building, refineries.
› Machinery and plant engineering, maintenance.
Features:
› Mechanical hand torque multiplier for controlled screw tightening
and unloosening screw connections.
› With a single-stage planet gear.
› High-performance aluminium housing.
› With Z-form offset reaction arm of Chrome Vanadium steel.
› Can be optionally retrofitted with L-form straight reaction arm – with adjustable reaction arm
– of lightweight metal.
› Multiplication at the ratio of 1:5.
› Guaranteed accuracy: Better than +/- 3% tolerance.
› For operation in combination with a torque wrench.
› 1 model for a maximum load of around a maximum 1300Nm.
› Also available as set (No. DVV-13ZG) with three different impact sockets – sizes 27, 30, 32mm.
› Output square with drill hole for impact sockets with safety pin and ring.
Scope of delivery:
› Torque Multiplier DREMOPLUS ALU.
› With Z-form offset reaction arm.
› Delivery in sturdy shipping case with foam insert.
› Factory test certificate and setting table.
› Detailed technical information is available on request.
