Technical Specifications
length 1960 mm
Width depth 1060 mm
height 1690 mm
mass 1250 kg
Power drive motor 5.5 kW
Total connected value 5 kW
Electrical voltage 400V
Phase (s) 3 Ph
Current Type ~
power frequency 50 Hz
Spindle taper DIN ISO 702-1 No. 5
Spindle bore / rod diameter 52 mm
Center height 200 mm
distance between centers 800 mm
Circumferential diameter over machine bed 400 mm
Circumferential diameter over cross slide 245 mm
bed width 260 mm
Speed range 30 – 3000 min-1
Number of speed ranges 2
Travel X-axis 112 mm
Traverse Z-axis 212 mm
Tailstock MK 3
Tailstock quill stroke 110 mm
Tailstock pinole diameter 50 mm
Coolant system Performance Coolant pump 125 W
spindle taper MK 6
Feed area along 0.0263-1.8416 mm / rev
Number of feeds along 48
Feed area flat 0.0133-0.9321 mm / rev
Number of feeds plan 48
Gradient Metric 0.2 – 14 mm / rev
Number of slopes Metric 22
Gradient inches 80-1gg / in
Number of slopes inches 42
Gradient module thread 0.1 – 7 mm / rev
Number of gradients module thread 44
Drive motor stages 2
description

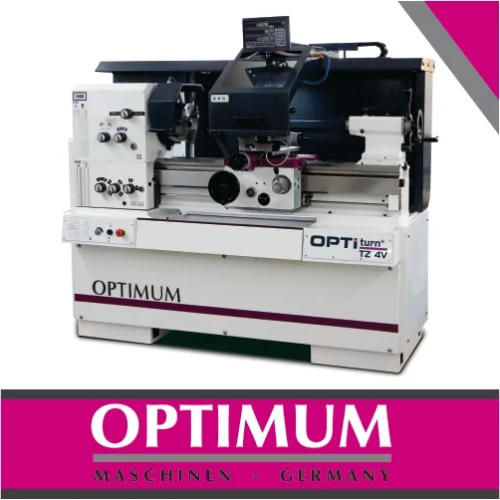

Precision center lathe with digital position indicator NEWALL DP 700 and quick-change steel holder as well as electronically adjustable speed
Hardened and ground Z-axis guideway
Partial covering with entrained, large-dimensioned chip protection
Chip protection with integrated position indicator, coolant hose and additional control panel
Plan and upper slide spindle is hardened and ground and adjustable via split spindle nut
Emergency stop blow switch, motor protection switch, lockable main switch
Fine graded feed and thread cutting area
LED machine lamp for complete illumination of the working area
Reduction of the deceleration time of the main spindle by electrically braked motor
Control cabinet with 24 V DV power supply. All contactors and relays from Siemens or Schneider
Optionally available change wheel set for inch thread
Safety handwheels with release function in the X and Z axis
Quick change steel holder SWH 5-B
Steel holder 25 x 120 type D for square chisels
Digital position indicator NEWALL DP 700
Room amenities
Control panel
For switching from
lighting
coolant
Selector switch for 2-speed motor
Membrane keyboard easy to clean
NEWALL digital position indicator
DP 700
chip protection
movable
Running coolant hose
Bed geometry
Shallow angle
Higher power consumption
wirings
about energy chains
Guide and Zugspindelabdeckung
change gears
optionally also available for inch thread
chip pan
Extendable to the front
Delivery Information
Fixed bezel passage Ø 10 – 130 mm
Running bezel passage Ø 10 – 100 mm
LED machine light
Reduction sleeve MK 3 and MK 6
Fixed centering point MK 3
Quick change steel holder 5-B
Steel holder 25 x 120 type D for square chisels
position stop
Change wheels set for metric thread
operating tool
Included in the scope of delivery: Initial machine filling with quality oil
