Technical Specifications
Length (product) 1,920 mm
Width / depth (product) 740 mm
Height (product) 1,222 mm
Weight (net) 775 kg
Power drive motor 1.5 kW
Electrical voltage 400V
Phase (s) 3 Ph
Current Type ~
power frequency 50 Hz
Spindle taper Camlock DIN ISO 702-2 No. 5
Spindle bore / rod diameter
Center height 205 mm
distance between centers 1,000 mm
Circumferential diameter over machine bed 410 mm
Circumference diameter in the bed bridge 540 mm
Turning length in the bed bridge 165 mm
bed width 206 mm
Speed range 45 – 1,800 min-1
Number of speed ranges 16 steps
Travel X-axis 100 mm
Travel Y-axis 195 mm
Tailstock MK 3
Tailstock quill stroke 130 mm
Tailstock pinole diameter
spindle taper MK 6
Steel holder pick-up height max. 16 mm
Feed area along 0.043 – 0.653 mm / rev
Number of feeds along 48
Feed area flat 0.015 – 0.206 mm / rev
Number of feeds plan 48
Gradient Metric 0.4 – 7 mm / rev
Number of slopes Metric 42
Gradient inches 70 – 4 Gg / in.
Number of slopes inches 42
description

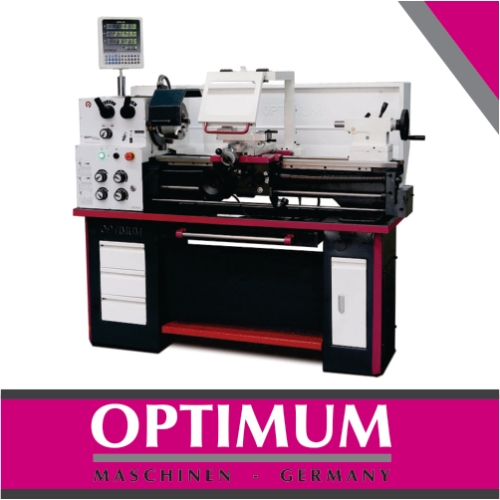

Fully equipped mechanic lathes. Convincing in precision and performance. TH 4010D with digital position indicator DPA 21, TH 4010V additionally with Siemens inverter vario drive
Hardened and ground Z-axis guideway
Spindle mount Camlock DIN ISO 702-2 No. 5
Guaranteed concentricity of the spindle nose better than 0.015 mm
Gears and shafts hardened and ground,
running in an oil bath in precision bearings
Motor protection switch (TH 4010 / TH 4010D)
DC 24 Volt – electrics
Lockable main switch
Right / left rotation on bed sled switchable
Safety handwheels with release function in the X and Z axis
Emergency stop device with foot control
TH 4010D / TH 4010V:
Digital position indicator DPA21
User-friendly membrane keypad, splash-proof, closed and glare-free
Higher work accuracy
Error rate is reduced
X, Z0, Z axis with 8-digit display each
glass scales
TH 4010V:
Siemens Sinamics Frequency Inverter / Safety Integrated
Quick-change steel holder 3-E
Steel holder 20 x 100 type D for square chisels
Room amenities:
switch cabinet
24 volt DC power supply
All contactors and relays from Siemens or Schneider – TH 4010V from Eaton
main spindle
Running in oil bath
Gear wheels smooth, hardened and ground
sled
Precisely worked
Handwheels with adjustable fine scale 0.04 / 0.02 mm
All guides can be adjusted by wedge strips
Adjustment range upper slide ± 90 °
LED machine light
integrated in the chip protection
Coolant system
prism bed
Heavily ribbed
cast iron
Induction hardened and precision ground
tailstock
For taper turning ± 10 mm adjustable
Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
substructure
Without tool trays, only screens
chip pan
extractable
guide rails
Note:
The Vario lathes comply with the standard DIN EN 55011: Class A.
Delivery Information
Fixed bezel passage Ø 5 – 85 mm
Running bezel passage Ø 5 – 65 mm
LED machine light
Reduction sleeve MK 6 / MK 3
Fixed centering points MK 3
Fixed centering point MK 3, alloyed
Revolving centering point MK 3
Position stop with fine adjustment
Change gear set
Initial machine filling with quality oil
operating tool
TH 4010 / TH 4010D
Quadruple steel holder 16 mm
TH 4010V
Quick-change steel holder 3-E
Steel holder 20 x 100 type D for square chisels
Do not forget the lathe chuck!
