Technical Specifications
Length (product) 1,930 mm
Width / depth (product) 725 mm
Height (product) 1,620 mm
Weight (net) 610 kg
Power drive motor 1.5 kW
Electrical voltage 400V
Phase (s) 3 Ph
Current Type ~
power frequency 50 Hz
Spindle taper Camlock DIN ISO 702-2 No. 5
Spindle bore / rod diameter
Center height 180 mm
distance between centers 980 mm
Circumferential diameter over machine bed 356 mm
Circumference diameter in the bed bridge 516 mm
Turning length in the bed bridge 160 mm
bed width 187 mm
Speed range 70 – 2,000 min-1
Number of speed ranges 8 steps
Travel X-axis 100 mm
Travel Y-axis 170 mm
Tailstock MK 3
Tailstock quill stroke 120 mm
Tailstock pinole diameter
spindle taper MK 6
Steel holder pick-up height max. 16 mm
Feed area along 0.052 – 1.392 mm / rev
Number of feeds along 32
Feed area flat 0.014 – 0.38 mm / rev
Number of feeds plan 32
Gradient Metric 0.4 – 7 mm / rev
Number of slopes Metric 26
Gradient inches 56 – 4 Gg / in.
Number of slopes inches 34
description

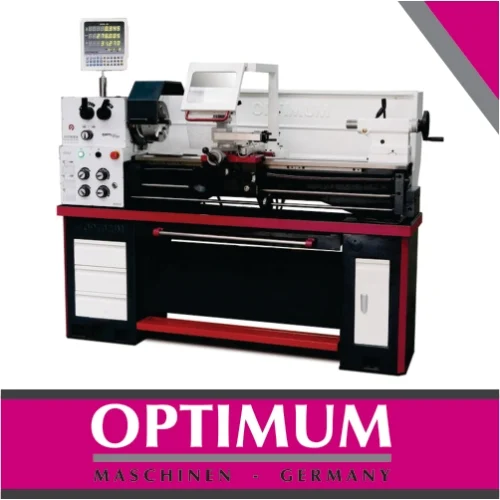

Fully equipped mechanic lathes. TH 3610D with digital position indicator DPA 21
Hardened and ground Z-axis guideway
Spindle mount Camlock DIN ISO 702-2 No. 5
Guaranteed concentricity of the spindle nose better than 0.015 mm
Gears and shafts hardened and ground,
running in an oil bath in precision bearings
Motor protection switch, lockable main switch
Right / left rotation on bed sled switchable
leading spindle
Machine base with tool pockets
Emergency stop device with foot control
Safety handwheels with release function in the X and Z axis
TH 3610D:
Digital position indicator DPA 21
User-friendly membrane keypad, splash-proof, closed and glare-free
Higher work accuracy
Error rate is reduced
X, Z0, Z axis with 8-digit display each
glass scales
Room amenities:
switch cabinet
24 volt DC power supply
All contactors and relays from Siemens or Schneider
main spindle
Running in oil bath
Gear wheels smooth,
hardened and ground
sled
Precisely worked
Handwheels with adjustable fine scale
0.04 / 0.02 mm
Quadruple tool holder
All guides can be adjusted by wedge strips
Adjustment range upper slide ± 90 °
LED machine light
integrated in the chip protection
prism bed
Heavily ribbed
cast iron
Induction hardened and precision ground
tailstock
For taper turning ± 10 mm adjustable
Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
substructure
Tool compartments on both sides
chip pan
extractable
guide rails
switch
with life cycle calculation
tested according to EN ISO 13849
Right-left switch
two channels
tested according to EN 23125
hand wheels
decoupled
tested according to EN 23125
Delivery Information
Fixed bezel passage max. Ø 100 mm
Running bezel passage max. Ø 95 mm
LED machine light
Reduction sleeve MK 6 / MK 3
Two fixed centering points MK3
Quadruple tool holder
Change gear set
substructure
Initial machine filling with quality oil
operating tool
Do not forget the lathe chuck!
